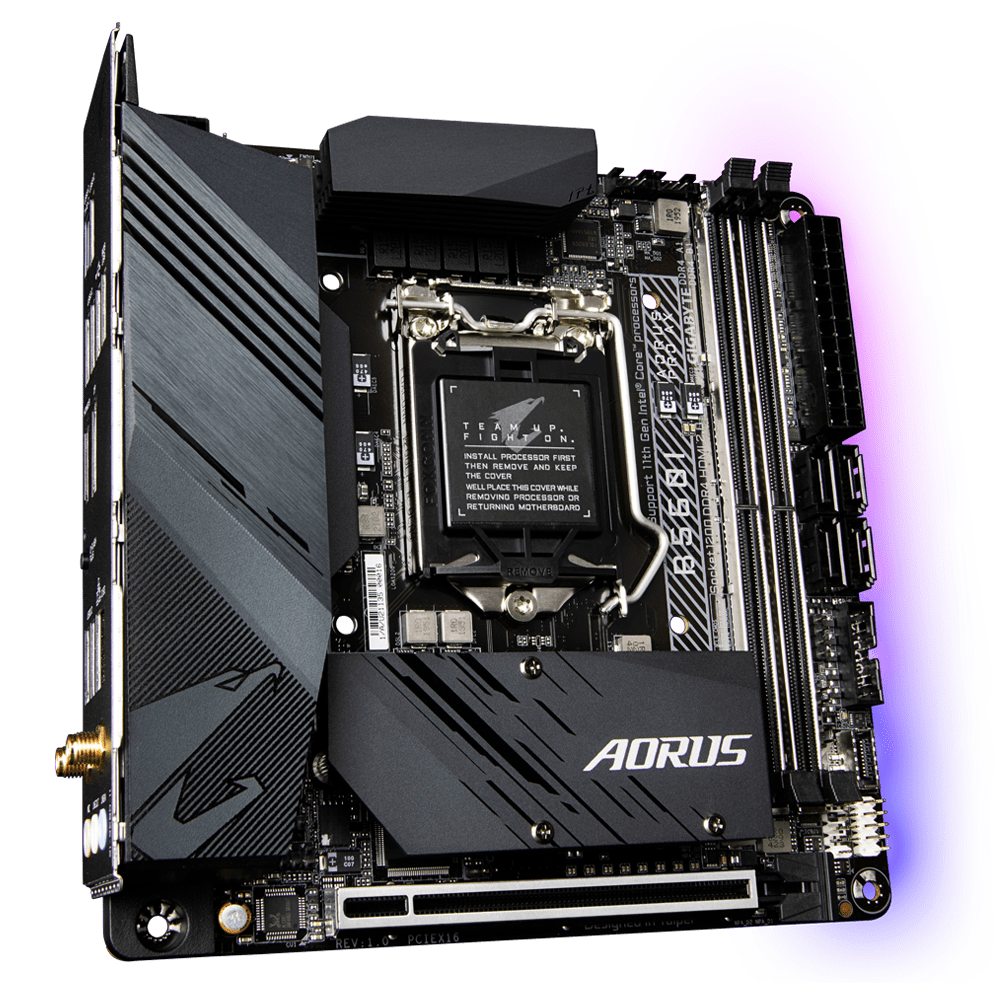

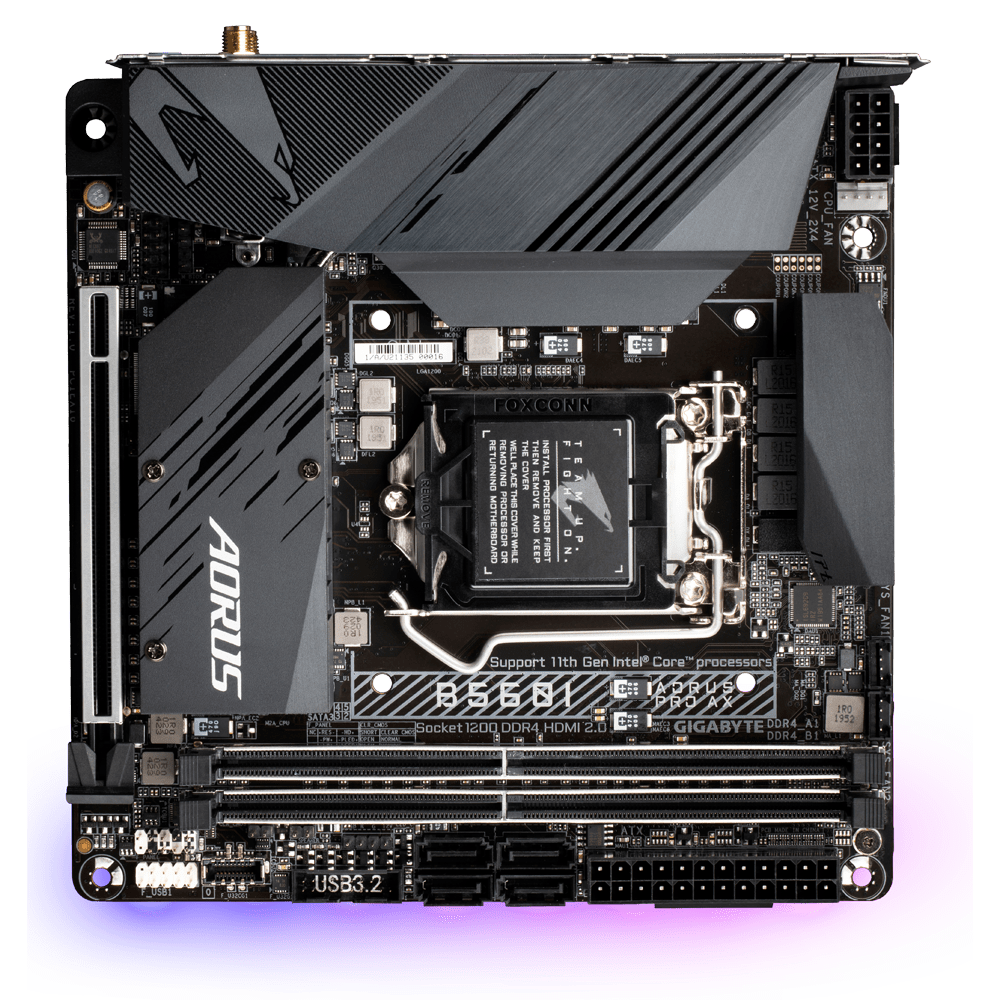

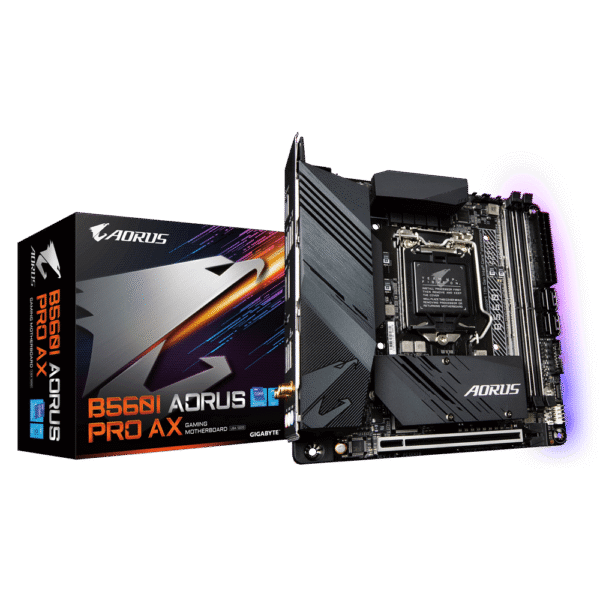

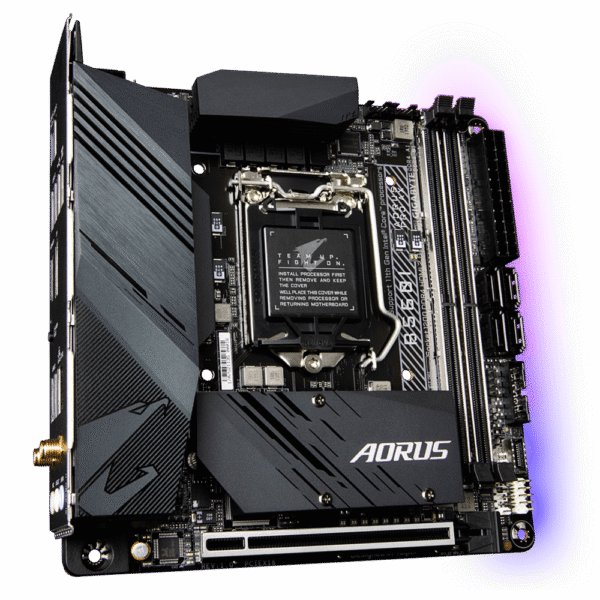

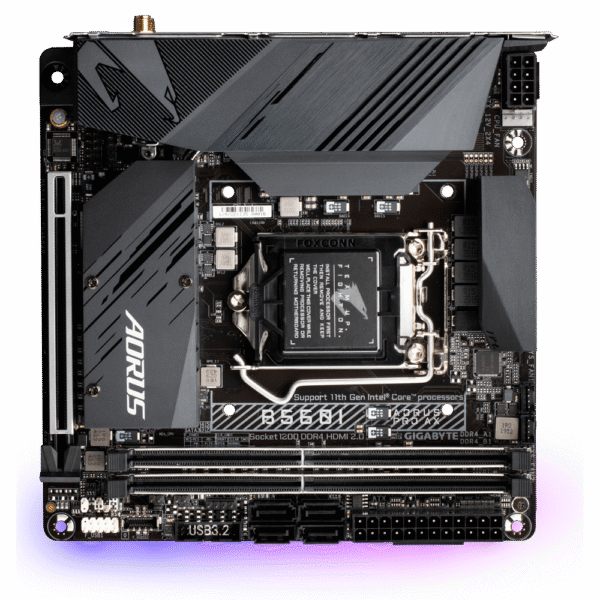

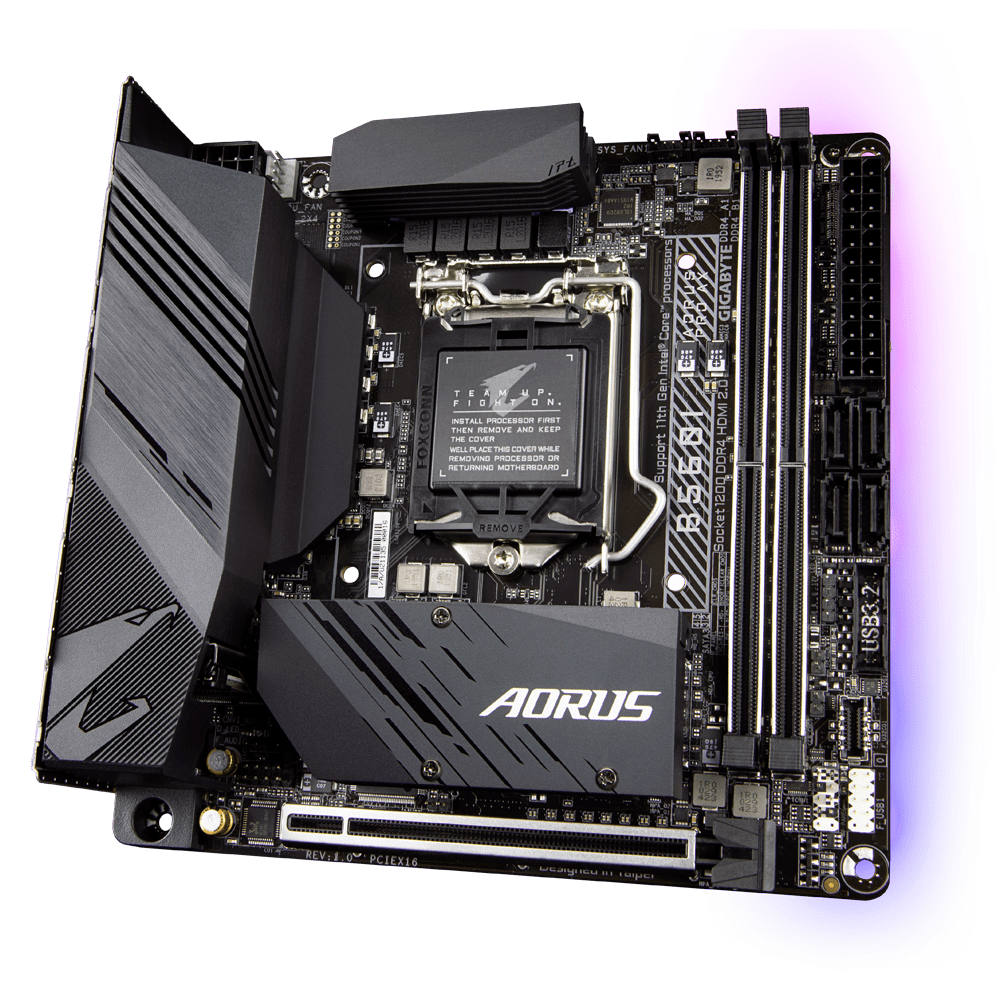

Gigabyte B560I AORUS PRO AX Motherboard

36 People watching this product now!

Gigabyte B560I AORUS PRO AX Motherboard

SKU Gigabyte-B560I-AORUS-PRO-AX Categories , , Tags , , , , , , , , , ,

Original price was: ₹24,300.00.Current price is: ₹20,990.00.

Out of stock

Pickup

Pick up from Micro Center India

Same-day order before 1:30 PM

Free
Courier Delivery

Courier Delivery

Delivered to your specified address

3–5 Days
Courier Partners
Blue Dart Express Delhivery Logistics DTDC Courier Shiprocket
3–4 Working Days with Express
5–6 Working Days with Surface
3 Years Warranty
Free Shipping
3 Days Return
Delivery Partners
GST Invoice

Payment Methods:

Gigabyte B560I AORUS PRO AX Motherboard

Description

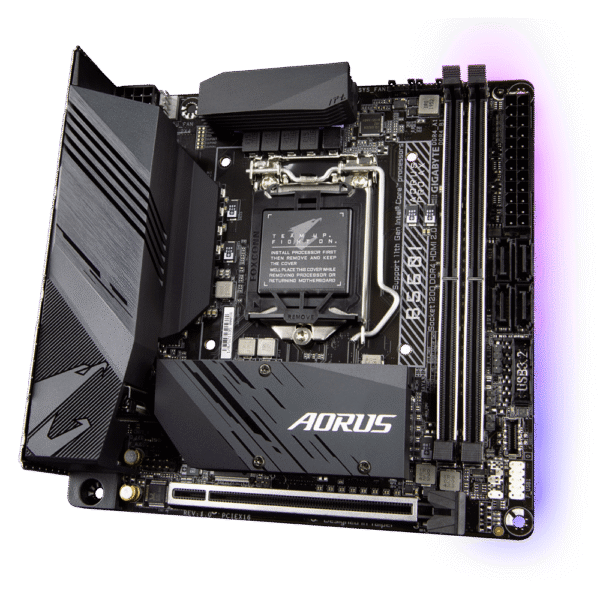

Gigabyte B560I AORUS PRO AX Motherboard

  • CPULGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors** Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU

    (Please refer to “CPU Support List” for more information.)

  • Chipset
    1. Intel® B560 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:Support for 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules
    4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.
    1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication moduleIntel® Wi-Fi 6 AX200
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)** Supported by 11th Generation processors only.
  • Storage InterfaceCPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)** Supported by 11th Generation processors only.

    Chipset:

    1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)

    4 x SATA 6Gb/s connectors

    Intel® Optane™ Memory Ready

  • USBChipset:
    1. 2 x USB Type-C® ports, with USB 3.2 Gen 1 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    4. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+1 USB 3.2 Gen 1 Hub:

    1. 4 x USB 3.2 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 4 x SATA 6Gb/s connectors
    8. 2 x M.2 Socket 3 connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x speaker header
    12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    13. 1 x USB 3.2 Gen 1 header
    14. 1 x USB 2.0/1.1 header
    15. 1 x Clear CMOS jumper
    16. 1 x chassis intrusion header

    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

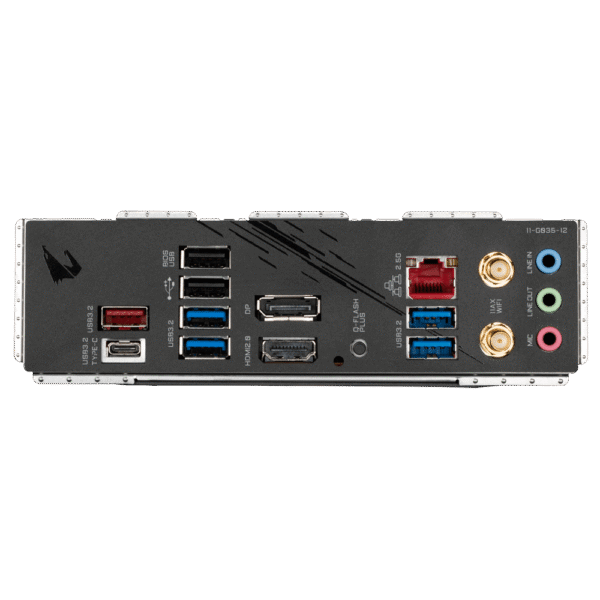

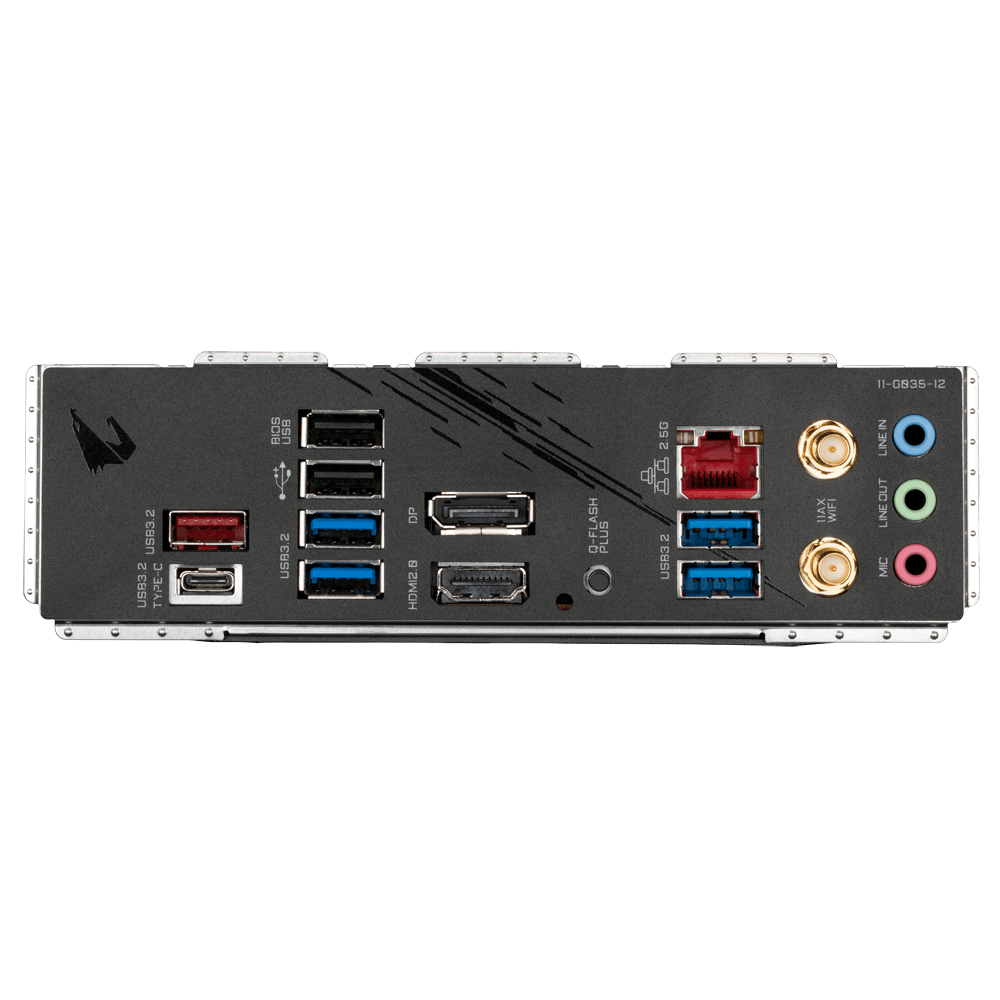

  • Back Panel Connectors
    1. 1 x DisplayPort
    2. 1 x HDMI port
    3. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    4. 1 x USB 3.2 Gen 2 Type-A port (red)
    5. 4 x USB 3.2 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 2 x SMA antenna connectors (2T2R)
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTune

      Fast Boot

      Game Boost

      ON/OFF Charge

      RGB Fusion

      Smart Backup

      System Information Viewer

    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
