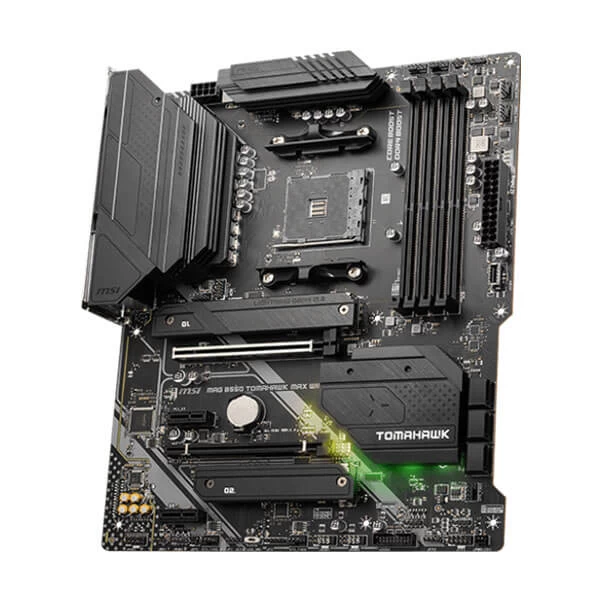

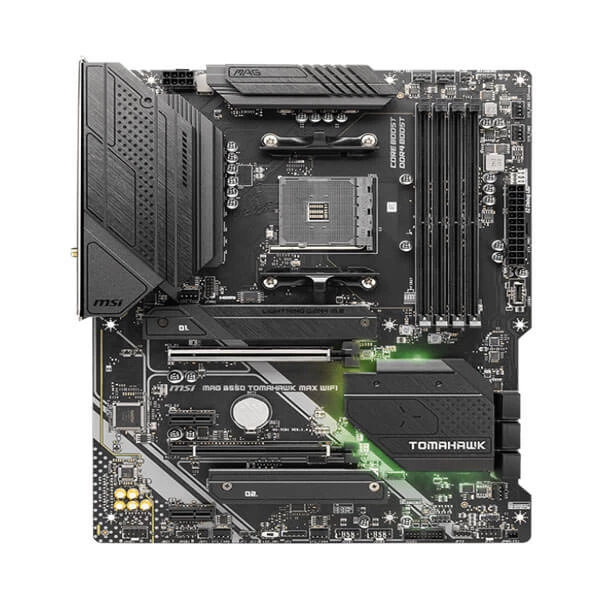

MSI MAG B550 Tomahawk MAX WIFI Motherboard

36 People watching this product now!

MSI MAG B550 Tomahawk MAX WIFI Motherboard

SKU MAG-B550-TOMAHAWK-MAX-WIFI Categories , , Tags , , , ,

Original price was: ₹19,999.00.Current price is: ₹9,999.00.

Out of stock

Pickup

Pick up from Micro Center India

Same-day order before 1:30 PM

Free
Courier Delivery

Courier Delivery

Delivered to your specified address

3–5 Days
Courier Partners
Blue Dart Express Delhivery Logistics DTDC Courier Shiprocket
3–4 Working Days with Express
5–6 Working Days with Surface
3 Years Warranty
Free Shipping
3 Days Return
Delivery Partners
GST Invoice

Payment Methods:

MSI MAG B550 Tomahawk MAX WIFI Motherboard

Description

MSI MAG B550 Tomahawk MAX WIFI Motherboard Supports AMD Ryzen 5000 Series processors, DDR4 Memory, up to 5100+(OC) MHz, PCIe 4.0.

Features:

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
  • Supports DDR4 Memory, up to 5100+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire

Specification:

Model MAG B550 TOMAHAWK MAX WIFI
Processor Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Chipset AMD B550 Chipset
Memory 4 x DDR4 memory slots, support up to 128GB

  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE
  • 1DPC 1R max speed 5100 MHZ
  • 1DPC 2R max speed 3866 MHZ
  • 2DPC 1R max speed 4000 MHZ
  • 2DPC 2R max speed 3600 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory
Supports un-buffered memory
Expansion Slot
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
  • 2x PCIe 3.0 x1 slots
Multi-GPU Supports AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz
  • Support HDCP 1.4 & 2.3
  • 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz 1
  • Maximum shared memory of 16 GB
Storage AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
  • M2_1 slot (from AMD Processor)
  • Supports PCIe 4.0/ 3.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD B550 chipset)
  • Supports PCIe 3.0×4
  • Supports 2242/ 2260/ 2280 storage devices
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output
Wireless Lan & Bluetooth
  • AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz  (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2, FIPS, FISMA
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper

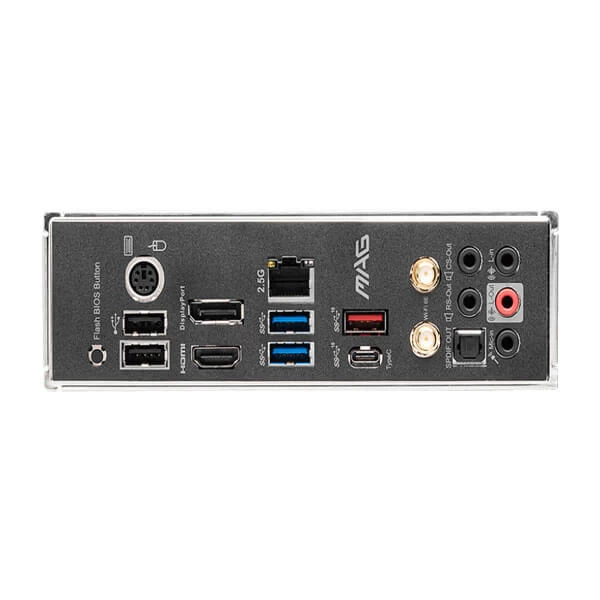

Back panel ports
  • Keyboard / Mouse
  • DisplayPort 1.4
  • 2.5G LAN Port
  • USB 3.2 Gen 2 10Gbps Type-A
  • Wi-Fi / Bluetooth Antenna
  • Audio Connectors
  • Flash BIOS Button
  • USB 2.0 Port
  • HDMI 2.1 Port
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2 10Gbps Type-C
  • Optical S/PDIF OUT
Dimensions ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • PLATFORMAMD
  • SOCKETAM4
  • ChipsetB550
  • SUPPORTED MEMORY TYPEDDR4
  • MAX MEMORY SUPPORT128 GB
  • FORM FACTORATX

Additional Information

Brand

EAN Code

Weight

Motherboard Size

Socket

Chipset

Motherboard Series

Platform

Product Type

Warranty
